Product Details

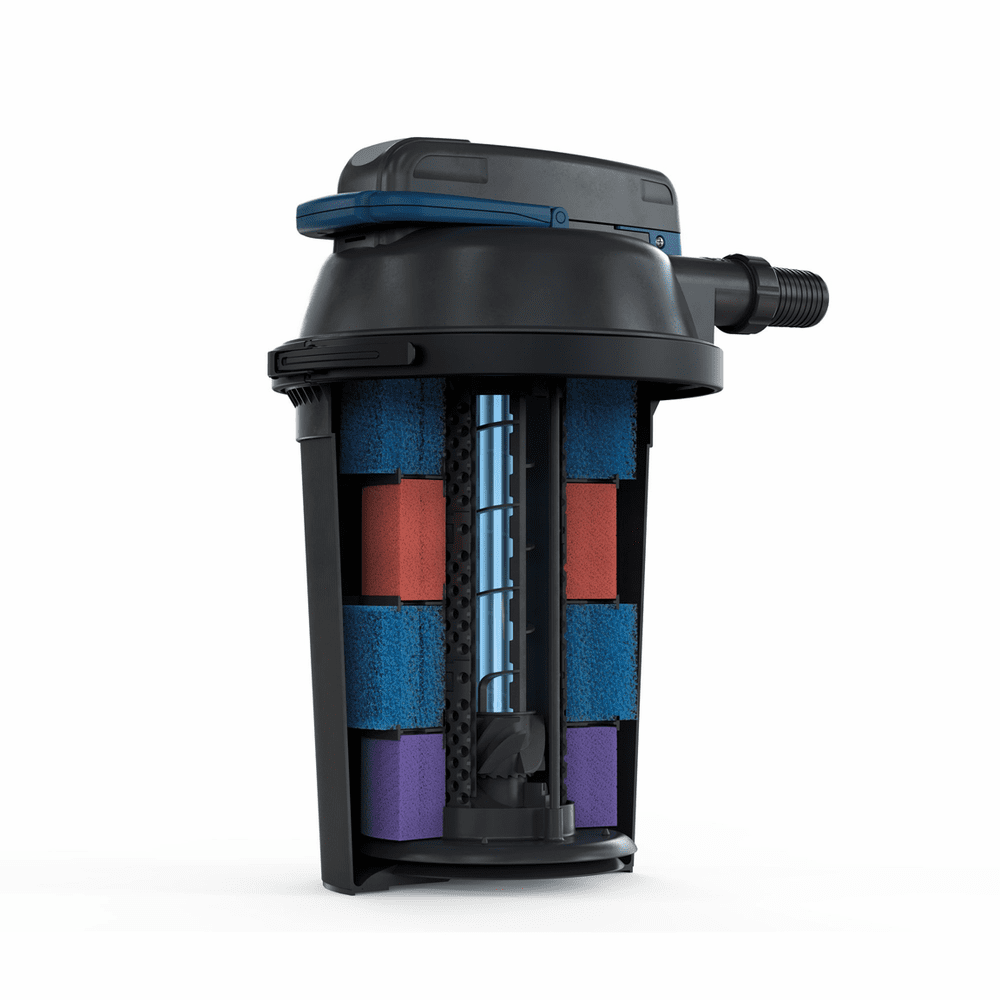

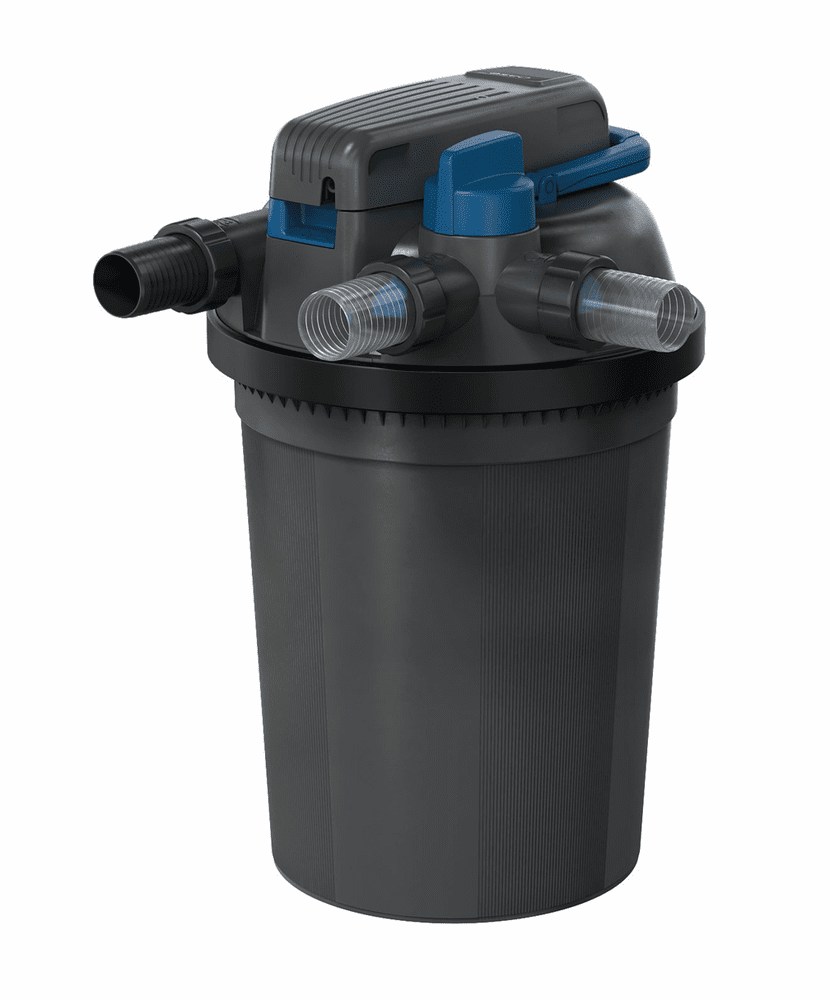

- The FiltoClear pressure filter series has built-in mechanical, biological, and UVC cleaning power with patented Easy-Clean function
- Compact, impact-resistant unit with high filtration capacity is perfect for small places around the pond
- Easy-Clean and back flush function can be quickly and easily operated without removing the lid or tubing; activated by turning the blue rotary switch
- Integrated, EPA-registered 42W UV Clarifier eliminates bad bacteria and pathogens, and cleans the green out of the pond water
- Safely confirm that the UVC is working with the visual inspection window at the top of the filter
- Canister portion of the FiltoClear unit can be buried and concealed
- The FiltoClear 5200 has a light fish load of less than 5,200 gallons, a medium fish load of less than 2,600 gallons and a heavy fish load of less than 1,300 gallons.
- Requires pump and tubing for operation (not included)
- When properly sized, paired, and registered online, this product qualifies for the manufacturer's Clear Water Guarantee. Use with either AquaMax Eco-Classic 2700 or AquaMax Eco-Premium 3000 pump.
- 2 year limited manufacturer warranty
- Instruction manual .PDF

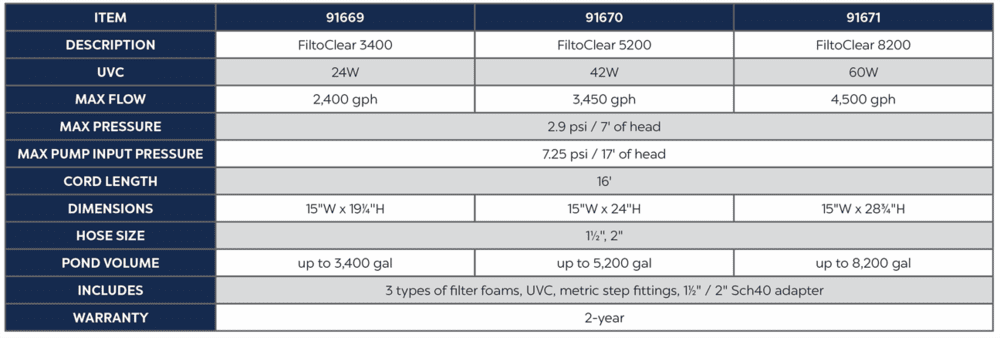

Specifications:
- Approximate Dimensions: 15" x 24"
- Operating Voltage: 110-120V / 60Hz
- UVC Power: 42W
- Power Cable Length: 16 ft
- Max. Flow Rate: up to 3,450 GPH
- Tubing Connectors: 1-1/2, 2 in. barbed and Sch 40
- Includes: 3 types of filter foams, UVC, metric step fittings, 1-1/2" / 2" Sch40 adapter
- Max. Pressure: 2.9 psi / 7 ft. of head
- Max. Pump Input Pressure: 7.25 psi / 17 ft. of head (Max pump shut off 17')
- Max. Pond Size (light fish load): 3,400 gallons
- Max. Pond Size (medium fish load): 1,700 gallons
- Max. Pond Size (heavy fish load): 850 gallons
