Product Details

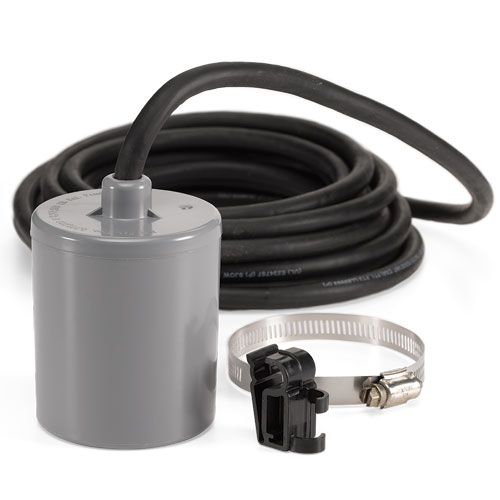

This Remote Float Switch, (aka Wide Angle Float Switch) is a direct-acting, in-line control system for automatically controlling wastewater, effluent, and sewage pumps. Float switch consists of one float, a cord with piggyback plug, one large mounting strap and two small adjustable mounting clamps.
Features:
Technical Information:
This unit will convert any manual pump to an automatic pump, up through 2 HP @ 230 Volts or 1 HP @ 120 Volts
Click here for the specification sheet.
Click here for the instruction manual.
Features:
- Heavy duty contacts
- Totally self-contained pump switch - no control panel required
- CSA listed for use in water and sewage
- UL Certified
- Epoxy sealed switch and cord conductors are waterproof and weatherproof
- Small enough to operate when space is limited
- Adjustable pumping range
- Not sensitive to rotation (no "up" side) or turbulence.
- Piggy-back plug allows manual operation.
Technical Information:
- Model: RFSN-16 (599211
- Max run amps: 15
- Max starting amps: 55 @ 120V AC, 60hZ (35 amps @ 230V AC, 60hZ)
- Max 1 hp for 120 Volts AC
- Max 2 hp for 208/230 Volts AC
- 16 gauge, 2 conductor, UL/CSA SJOW neoprene water resistant cord with molded piggyback plug.
- 120V/230V - 60hZ Single Phase
- 20ft Long Power Cord (comes with a 120V piggyback plug. Ratings for 208V and 230V apply if plug is removed)
This unit will convert any manual pump to an automatic pump, up through 2 HP @ 230 Volts or 1 HP @ 120 Volts
