Impeller Replacement for the Pondmaster Mag-Drive Waterfall Pump - MDWP30 - 12665
Suggested Retail$105.60
Our Price$58.00You save45%
Usually ships the same business day
Product Details
Replacement Impeller for the PondMaster Mag-Drive Waterfall Pump:
Model MDWP30 / WFP3000 from E.G. Danner Manufacturing - Pondmaster.
All Pondmaster pumps will usually note on the label the following information on the label; this information does not specify the pump model as all models will have the same numbers or similar:
E160713
Listed 8C99
FAQ:
Question: Will the impeller fix my pump?
Answer: This depends on what signs your pump is displaying. Usually the pump will be rattling or vibrating with no flow or greatly reduced flow rate. You should unplug the pump and with dry hands open the pump cover by removing the screws on the front. Then pull out the impeller assembly. There should be some magnetic pull and if the impeller assembly comes out in multiple pieces or if a fan blade(s) are sheared or broken off or if the shaft is broken that should be a sign to change the impeller. Even if the there are no signs of damage, we recommend you do a pump test: Plug the pump in with the impeller assembly removed and place the impeller near the pump; it should shake which shows you that the pump is giving off magnetic pull. Promptly unplug the pump and an impeller assembly will probably fix your situation. If you don't get any magnetic shake from the pump than the pump is most likely defective and you should replace the entire pump as they cannot be repaired.
FAQ:
Question: Will removing the pump cover and/or impeller void the warranty?
Answer: No... Removing the pump cover and impeller is part of normal preventive maintenance and should be done every 6-12 months to keep your pump in perfect working order.
Actual Impeller may vary from photo
Model MDWP30 / WFP3000 from E.G. Danner Manufacturing - Pondmaster.
- Impeller Item # 12665
- Replaces the Impeller on the following Pump Models:

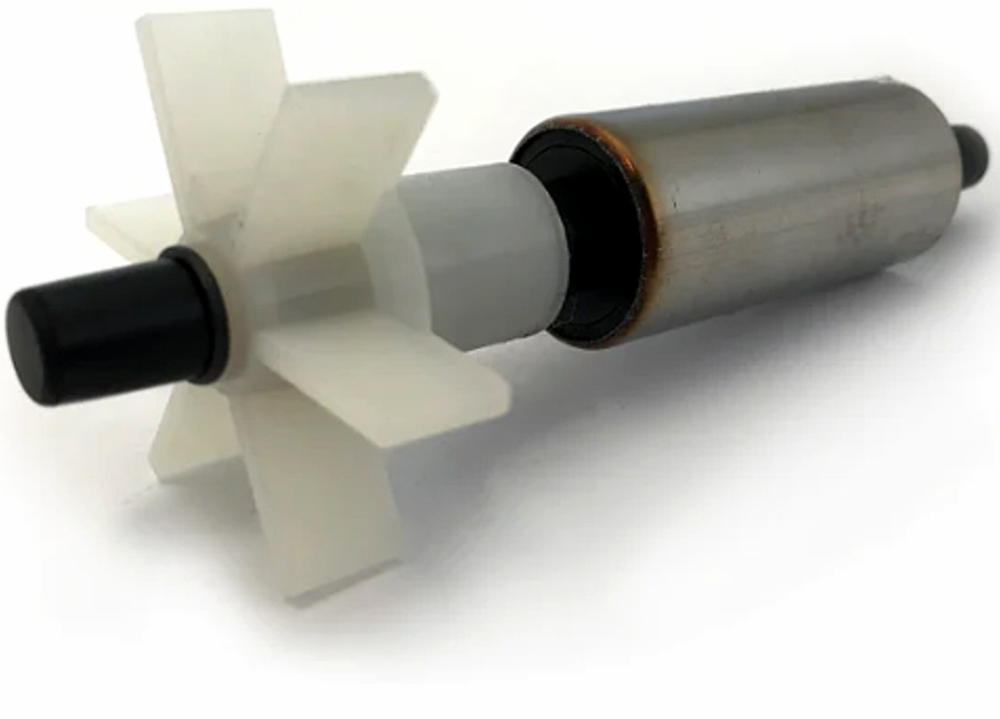

Model MDWP30 / WFP3000 Submersible Pumps: # 02660 - Includes the impeller fan with 6 blades, stainless coated magnet as one complete assembly along with the Ceramic shaft and end bearings
- Approximate dimensions: Magnet and Fan: 3.88" (98.67 mm) Total length - Magnet is 2.25" (57.17 mm) in length - Fan is 1.966" (49.94 mm) wide - Fan blade height at edge is 0.86" (12.36 mm) - Ceramic shaft including the end bearings: 5.40" (137.17 mm)
All Pondmaster pumps will usually note on the label the following information on the label; this information does not specify the pump model as all models will have the same numbers or similar:
E160713
Listed 8C99
FAQ:
Question: Will the impeller fix my pump?
Answer: This depends on what signs your pump is displaying. Usually the pump will be rattling or vibrating with no flow or greatly reduced flow rate. You should unplug the pump and with dry hands open the pump cover by removing the screws on the front. Then pull out the impeller assembly. There should be some magnetic pull and if the impeller assembly comes out in multiple pieces or if a fan blade(s) are sheared or broken off or if the shaft is broken that should be a sign to change the impeller. Even if the there are no signs of damage, we recommend you do a pump test: Plug the pump in with the impeller assembly removed and place the impeller near the pump; it should shake which shows you that the pump is giving off magnetic pull. Promptly unplug the pump and an impeller assembly will probably fix your situation. If you don't get any magnetic shake from the pump than the pump is most likely defective and you should replace the entire pump as they cannot be repaired.
FAQ:
Question: Will removing the pump cover and/or impeller void the warranty?
Answer: No... Removing the pump cover and impeller is part of normal preventive maintenance and should be done every 6-12 months to keep your pump in perfect working order.
Actual Impeller may vary from photo
Product Reviews
5
Steven
Reno
September 22, 2022
5
Dan H
Kansas
August 22, 2021
Excellent customer assistance
1st order arrived broken from rough treatment during shipping (it had been repackaged mid-transit obviously broken by the shipper who shall remain nameless but starts with fed and ends with ex). Notified 123ponds support by email and without any more discussion or fuss they simply responded with a replacement overnight.
Pros:None
Cons:None
5
Dave
Overland Park, KS
July 6, 2021
5
Arwen R.
September 2, 2019
Impeller replacement
This part brought my old pump back to life. I'd had no idea how badly the old impeller was damaged; when I put in this new one, not only did it work perfectly, it made me realize how sluggish the pump had gotten over the past few years. I have a proper waterfall again!
Pros:None
Cons:None
5
mike
ohio
May 27, 2019
Impeller replacement
Unit worked great but I wish they would also just sell the replacement shaft. This items appears to be made of a ceramic and that is the part that breaks normally and not the impeller. This is the second unit I had to buy in 3 yrs.
