Product Details
Details:
- For use in ponds, water gardens, aquariums, sumps and statuary
- Fish-safe because no oil is used
- Use with Fresh or Salt Water
- Ceramic shaft
- Continuous duty operation
- Removable / Relocatable Base Plate
- User replaceable Parts
- Volute / Pump Cover Can be rotated for convenient installation
- Includes Rigid Plastic Pre-filter for maximum flow
- 18ft power cord with grounded plug
- c UL us LISTED
- Thermally Protected
- Can be operated submersible or in-line (below water level)
- 1/2" MPT Discharge and 1/2" FPT Intake.
- 5 Year Limited Manufacturer's Warranty (1 Year on Impeller assembly)
Pump Selection Guide:

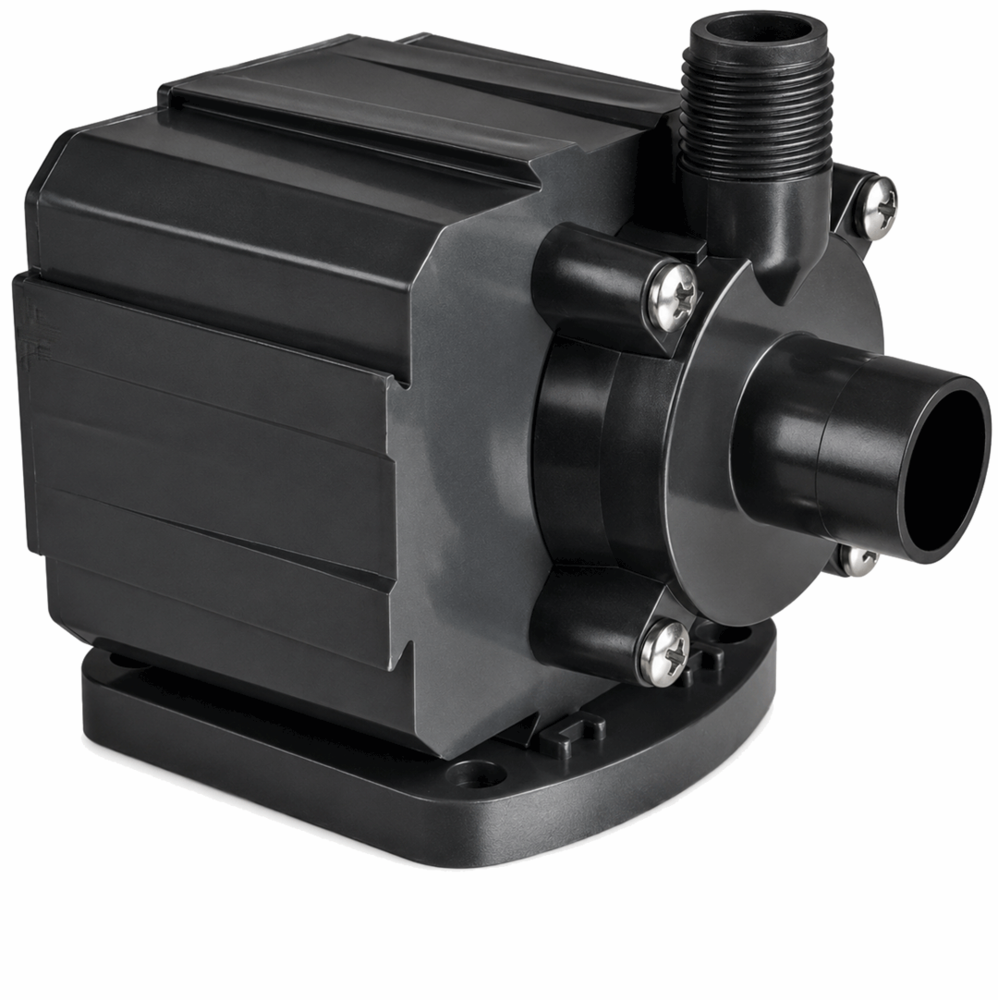

PondMaster Pond-Mag Model 7 - #02527 | |
Max Pumping Height / Shut-off: | 11ft 8in |
Max Watts / Amps | 70 / 1.6 |
Cord Length | 18ft |
Volts/hZ | 115 / 60 |
Dimensions: (L x W x H) | 5.0 x 3.8 x 4.2 (does not include fittings, cord, pre-filter) |
Pumping Capacity | |||||||
@ 1' | @ 3' | @ 5' | @ 6' | @ 7' | @ 8' | @ 9' | @ 10' |
655 gph | 565 gph | 450 gph | 420 gph | 325 gph | 275 gph | 200 gph | 110 gph |
Instruction Manual .PDF |
