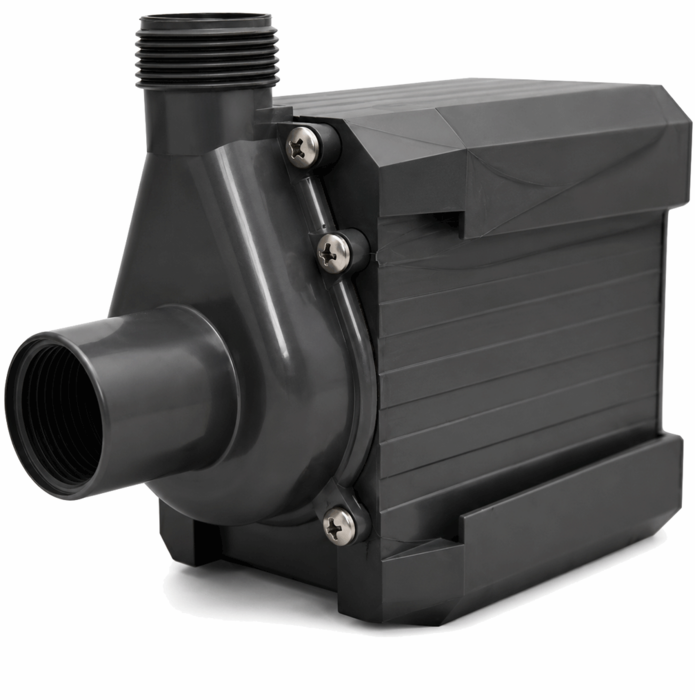

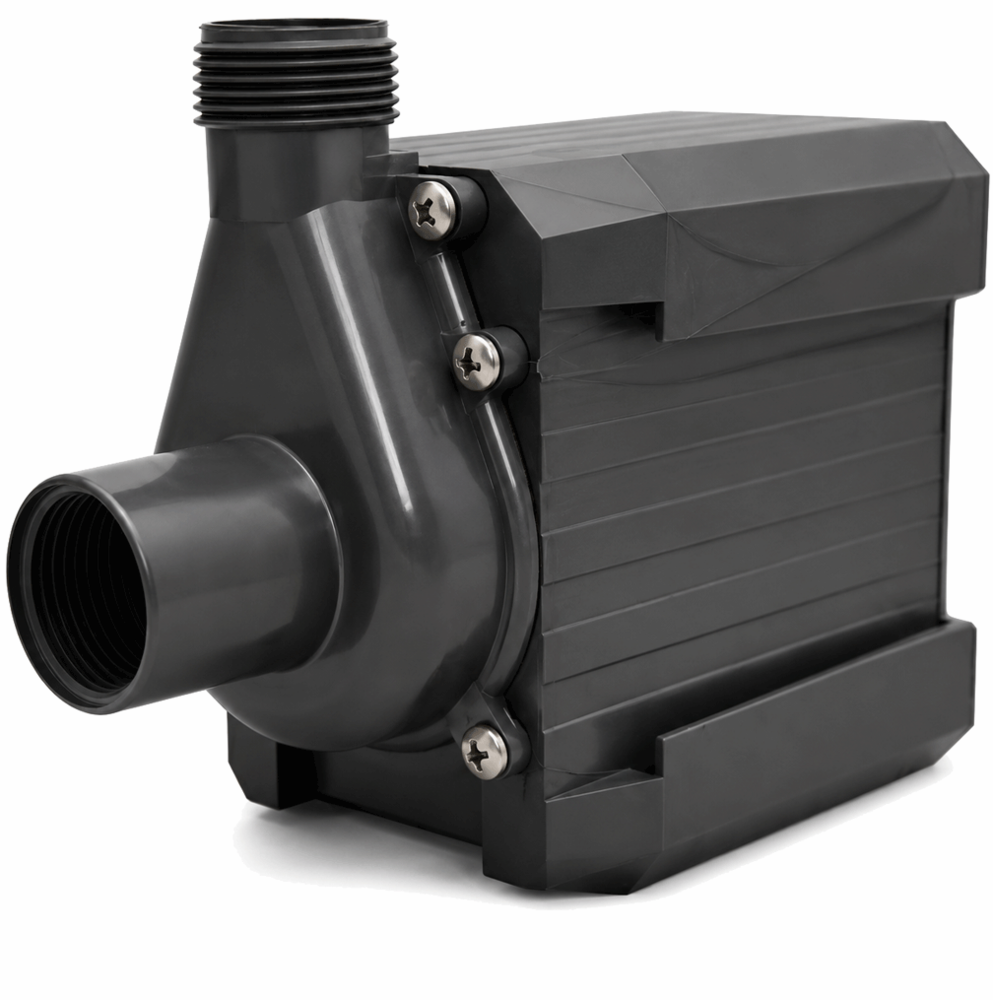

Supreme Aqua-Mag - MD24 - 2400 GPH Submersible Pump - 10ft Power Cord
Product Details
Details:
- For use in aquariums, sumps and ponds
- Fish-safe because no oil is used
- Use with Fresh or Salt Water
- Ceramic shaft
- Continuous duty operation
- User replaceable Parts
- Thermally Protected
- Horizontal or Vertical operation
- Includes Rigid Plastic Pre-filter for maximum flow
- 10ft power cord with grounded plug
- c UL us LISTED
- Can be operated submersible or in-line (below water level)
- 1" MPT Discharge and 1" FPT Intake (Minimum 1-1/4" ID Tubing should be used for maximum flow - adapters will be required)
- 5 Year Limited Manufacturer's Warranty (1 Year on Impeller assembly)
Pump Selection Guide:
Supreme Aqua-Mag Model 24 - #02740 | |
Max Pumping Height / Shut-off: | 17ft 1in |
Max Watts / Amps | 237 / 2.2 |
Cord Length | 10ft |
Volts/hZ | 120 / 60 |
Dimensions: (L x W x H) | 7.5" x 4" x 5.75" (does not include fittings, cord, pre-filter) |
Pumping Capacity | |||||||
@ 1' | @ 3' | @ 5' | @ 6' | @ 7' | @ 8' | @ 9' | @ 10' |
2400 gph | 2350 gph | 2030 gph | 1860 gph | 1730 gph | 1645 gph | 1510 gph | 1395 gph |
To obtain maximum flow rates - use a minimum of 1-1/4" inside diameter tubing Instruction Manual .PDF |
